Manufacturer Part: | EMT ID: |
BA9-1007757
|
1362
|
- 44 Ton (4 Station Ironworker)
- Oversize Tables with Adjustable Stops
- Foot Pedal Controlled
- Material Hold Downs
When a small fabricating shop is looking for new ironworker, two needs come to the front; floor space and cost. The SW-44 takes care of both problems. The small foot print allows it to fit just about anywhere and the cost makes it very attractive. Available in two electrical configurations, 220 volt single and three phase, assuring the SW-44 ironworker will work in any shop.

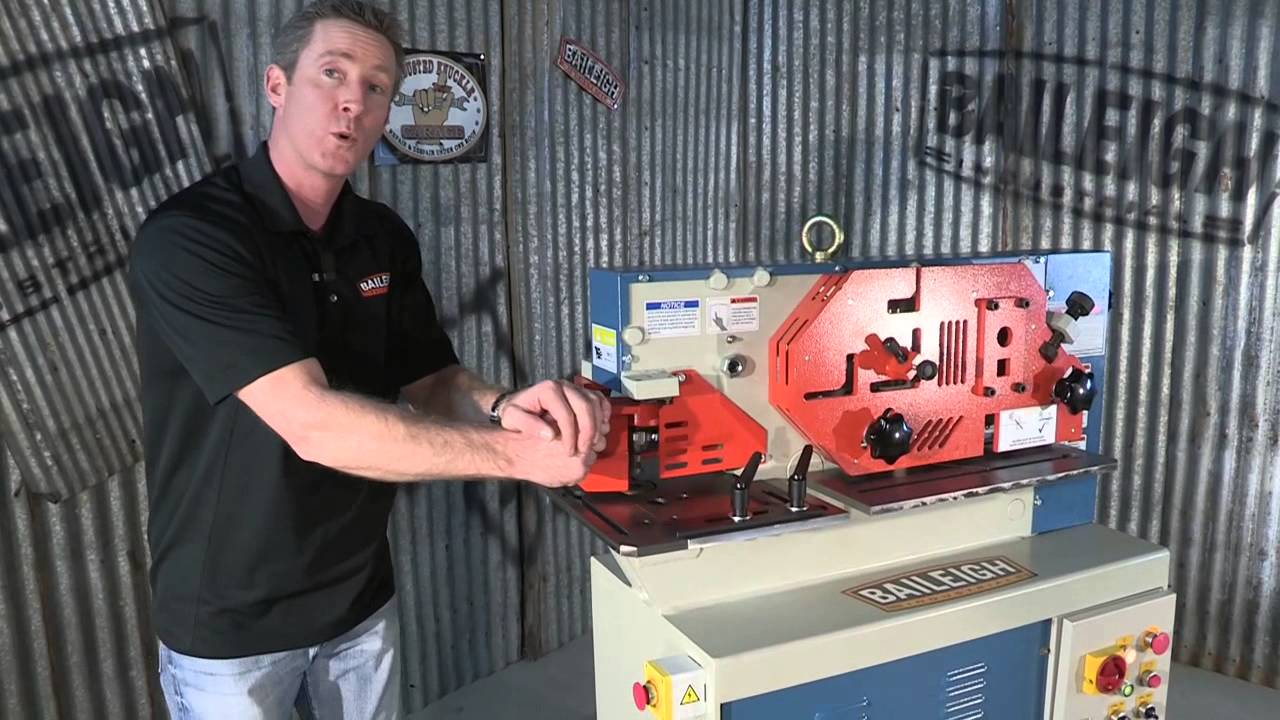

The SW-44 hydraulic Ironworker from Baileigh industrial is a 4 station machine with 44 tons of punching and shearing force. The four main functions of the SW-44 are punching; flat bar shearing, angle cutting, and section cutting for profiles. This pivot style ironworker is perfect for the shop on a budget, but this does not mean that is short on features. The SW-44 is available in both single and three phase versions and are both CSA and CE certified. A foot pedal control is also standard, as well as oversized tables for the punching and shearing sections.
Like all Baileigh Industrial ironworkers, the SW-44 has many options available including pipe notching, and press brake attachments. Capable of running at 23 cycles per minute, the SW-44 will make quick work of anything that you throw at it.
FEATURES:
-44 Ton
-Oversize tables with adjustable material stops
-Foot pedal controlled
-CE and CSA certified
-Material hold downs
-Many optional accessories available
-Safety interlock switches
SPECIFICATIONS:
PUNCHING:
-Punching Pressure: 44 tons
-Punch Capacity: .75" x .625"
(Diameter x Thickness) 1.5" x .375"
-Throat Depth: 6.88"
-Max. Stroke Length: 1.125"
-Cycles/Min. 23
-Working Height Up to Die: 42.32"
FLAT SHEARING:
-Flat Bar Shearing: 7.87" x .5"
-Blade Length: 13.87"
-Angle Flange Trim: 3.14" x .393"
-Working Height: 42.32"
ANGLE SHEARING:
-At 90-degrees Shearing: 3" x 3" x .25"
-Working Height: 40"
BAR SHEARING:
-Round Bar Shear: 1.125"
-Square Bar Shear: 1" x 1"
OTHER:
-Electrical Requirements: 15 Hp-220V 3-phase
-Net Weight (Apr.): 2,310 lbs.
-Dimensions (LxWxH): 45" x 30" x 68"
Manufacturer | |
SKU |
BA9-1007757
|
UPC |
731325417029
|
Shipping Method |
LTL Freight
|
Weight |
1,335 lb
|
Country of Origin |
Taiwan
|
