Manufacturer Part: | EMT ID: |
BA9-1006859
|
244
|
- Hydraulic Adjustment Of Top Roll
- Inverter Driven
- Varible Speed
- Digital Readout

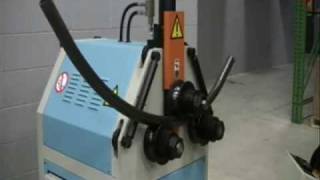

The R-M55H profile bender’s design was developed from the R-M55. It has the same 2" Schedule 40 pipe capacity, as the R-M55 but incorporates an industrial grade hydraulic system to control the top forming roll. This takes less effort and time on the operator to achieve the same radii. In addition to the hydraulic movement there is also a digital readout to let the operator know exactly where the top shaft is positioned. This is very important for repeating bends.
The R-M55H has a powerful direct gearbox drive system that delivers full torque when bending at full capacity. The R-M55H uses an inverter that is overload protected, to control the rolling speed. Being variable speed allows the operator to fine tune the rolling speed for each material. It only requires 220 volts of single phase power to operate and it can be operated in both the vertical mode for small rolling projects, as well as in the horizontal mode for large rolling projects as there are feet on the bottom and back of the machine.
Operation of the R-M55H profile bender is done from an independent operator pedestal that has the digital readout programmer, controls for the top roll positioning, as well as foot pedal controls for forward and reverse. This profile bender is designed to offers years of production at a very affordable price.
Pipe Capacity | 2" (sch.40) / Min. Dia. 40" |
Round Tube Capacity | 2.75" (.083") / Min. Dia. 60" |
Square Tube Cpacity | 2" (.120") / Min. Dia. 48" |
Solid Round Capacity | 1.375" / Min. Dia. 20" |
Flat Bar Easy Way | 4" (.5") / Min. Dia. 20" |
Flat Bar Hard Way | 2.25" (.375") / Min. Dia. 20" |
Shaft Diameter | 1.968" |
Shaft Center Distance | 13.12" |
Roll Ajustment | Hydraulic |
Lower Roll Dia. | 5.827" |
Pinch | Single |
Angle Iron Capacity | 2" (.250") / Min. Dia. 28" |
Power | 220V Single Phase |
Shipping Weight | 961lbs |
Shipping Dimensions | 60x44x68 |
*All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.*
Manufacturer | |
SKU |
BA9-1006859
|
UPC |
19907415800
|
Shipping Method |
LTL Freight
|
Weight |
965 lb
|
Dimensions |
60 × 44 × 68 in
|
Country of Origin |
Portugal
|
