Manufacturer Part: | EMT ID: |
JMB-25H
|
15497
|
- Maximum rebar diameter: #8 (1") Grade 60
- Bending Angle: 0 – 180 degrees
- Bending Speed: 9 Seconds for 180 degree bend
- Power Supply: 115V 50/60Hz -15 amps
Features

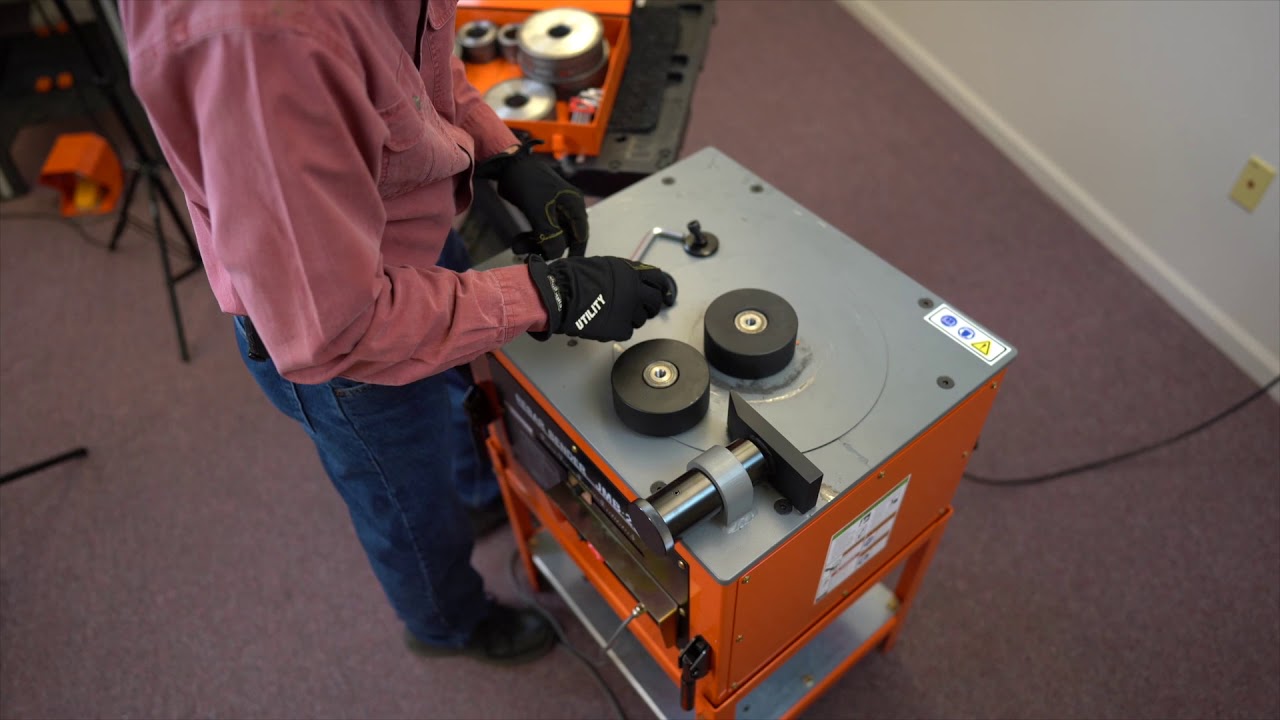

- The JMB-25 is a heavy-duty table-style bending machine, featuring a preset angle lock for repeating the same angle bends; accurately bends any angle from 0-180 degrees
- Bends (4) #3 rebar, (3) #4; (2) #5 or #6 rebar and (1) #7 or #8 rebar at one time. An emergency stop switch and four lifting handles are standard features
- The JMB-25H portable rebar bender comes complete with (9) bending rollers in a steel carrying case, a tool kit, a standard foot pedal control switch for hands-free bending, a stand and a one-year warranty.
- Designed for: No. 8, grade 60, rebar bending capacity, meets ACI 318-05.
Specifications
- Maximum rebar diameter: #8 (1") (25mm) Grade 60
- Bending Angle: 0 – 180 degrees
- Bending Speed: 9 Seconds for 180 degree bend
- Power Supply: 115V 50/60Hz -15 amps
- Weight (kg): 210 lbs. (95 kg)
- Dimensions (L x W x H): 21" x 22.6" x 17.2" (540 x 580 x 440 mm)
Manufacturer | |
SKU |
JMB-25H
|
UPC |
85694390255
|
Shipping Method |
LTL Freight
|
Weight |
310 lb
|
Dimensions |
26 × 28 × 22 in
|
Warranty |
1 Year
|
