Manufacturer Part: | EMT ID: |

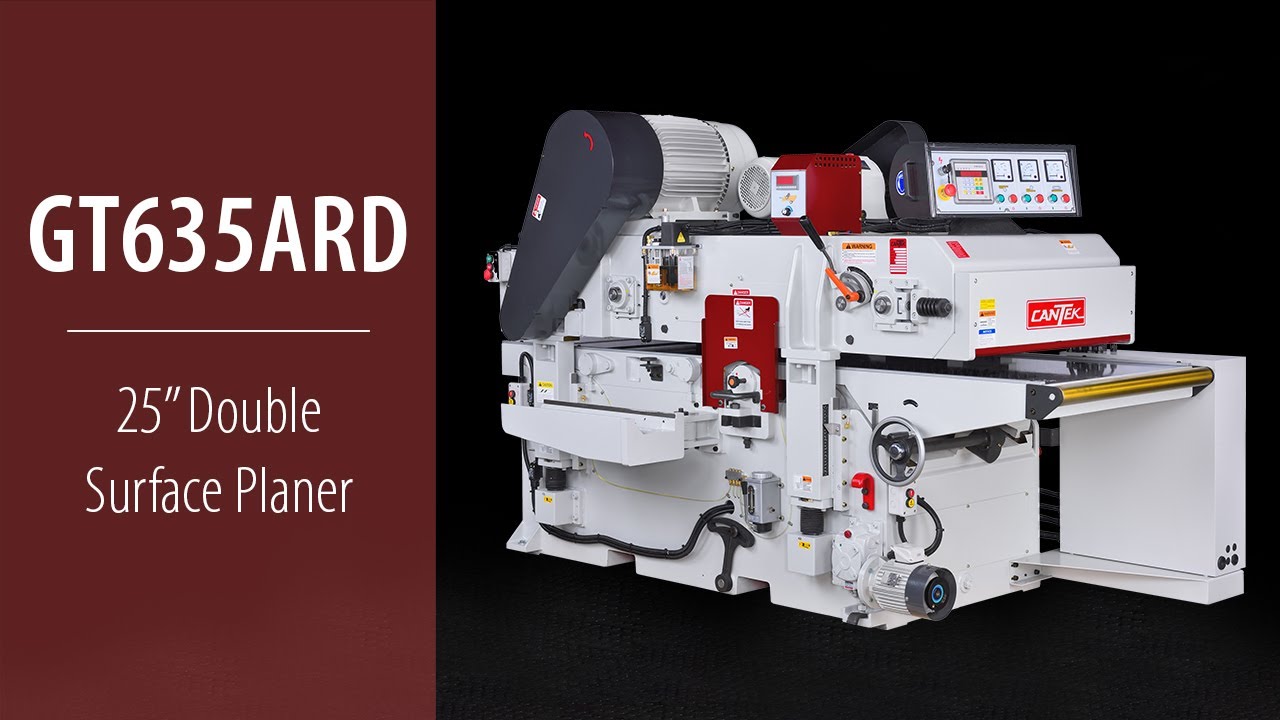

GT-635ARD-16
|
13235
|
- 25″ x 16″ capacity
- Cast-iron machine body and table for vibration free cutting
- Top planing head motor: 25 HP
- Feed speed (variable): 26-80 FPM
Features
- Swivel Controls Panel - Easy to access controls on swivel mount. Digital thickness control in Inch or MM (Inch to 3 decimal places for extra precision). Amp meters for each head and feed system.
- Variable Feed Speed - Easy to access variable speed control allows you to dial in the correct feed rate for your surfacing application.
- Spring Loaded Conveyor - Pressure spikes are in an overlapping lay out to minimize gaps to ensure workpiece is held firmly.
- Automatic Lubricator - Auto oil lubricator provides metered and consistent lubrication to the Spring Feed System. Equipped with a manual lubricator to all elevation slideways.
Other Highlights
- 25″ x 16″ capacity
- Cast-iron machine body and table for vibration free cutting
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- 3 Bottom Outfeed Bed Rolls also included
- Digital electronic thickness adjustment in INCH and MM. (Inch is to 3-deicimal places)
- Easy to access external handwheel adjustment of infeed bed
- Hard chromed work table
- Section Chipbreaker and top feed roller
- Rubber outfeed top roller to prevent chip marking
- Over thickness safety shut-off bar across infeed.
- Ammeter for each motor on control panel to monitor motor load
Specifications
- Max. working width: 25″
- Max. working thickness: 16″
- Min. workpiece length: 12.2″
- Bottom head motor: 20 HP
- Top planing head motor: 25 HP (Optional 30 HP Available)
- Feed motor: 5 HP
- Table elevation motor: 1/2 HP
- Knife dimensions: 30mmx12mmx1.5mm (92 per head -184 pcs. total)
- Cutterhead speed: 5400 RPM
- Feed speed (variable): 26-80 FPM
Manufacturer | |
SKU |
GT-635ARD-16
|
Shipping Method |
LTL Freight
|
Weight |
9,240 lb
|
Dimensions |
109 × 79 × 74 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
