Manufacturer Part: | EMT ID: |
MH-460M
|
3893
|
- Round Capacity at 0°: 9”
- Rectangular Capacity at 0°: 9” x 9”
- Blade Motor: 2 HP
- Adjustable down feed and pressure control
Description

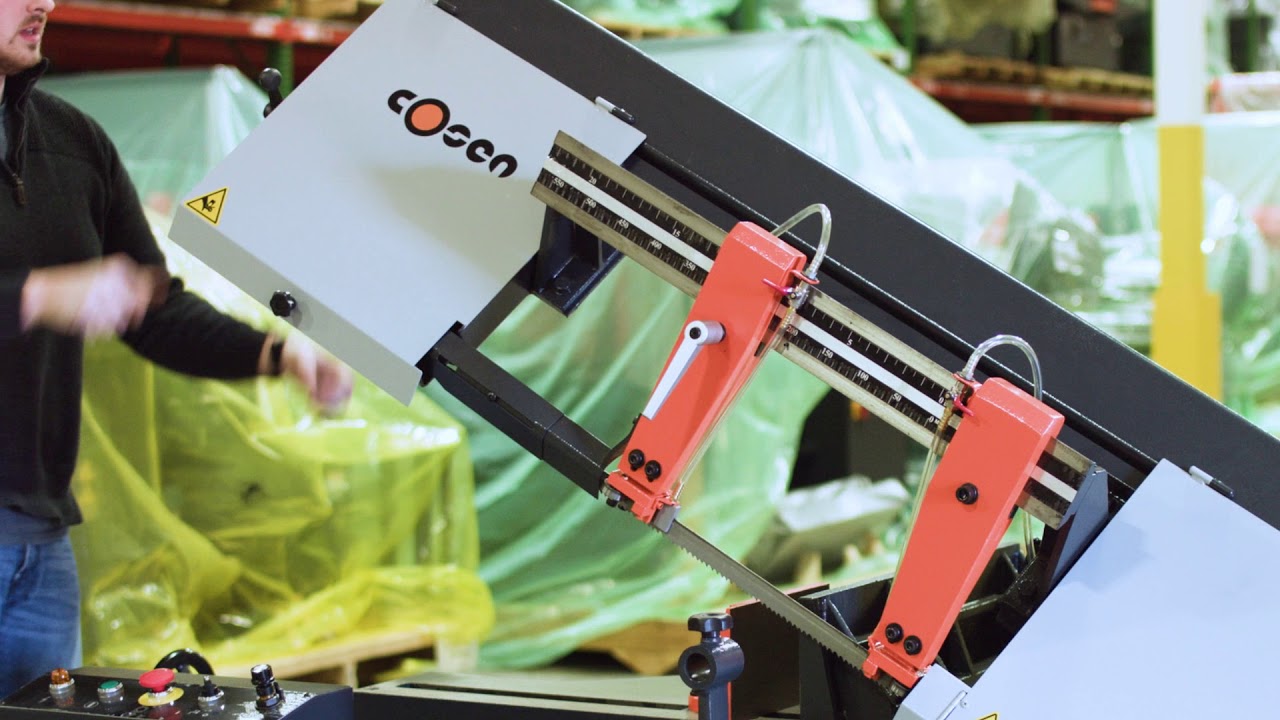

The MH-460M comes equipped with a heavy-duty swivel center frame design, allowing for an easier set up of miter cuts. Key features included on this robust machine allow for efficient use in limited run production environments, as well as for tool room applications. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
Features
- Hydraulic cylinder plus precision ground hinge support
- Heavy-duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
- Adjustable flood coolant system
- Carbide blade guides and bearings provides additional blade support
- Rigid cast-iron guide arms
- Cast-iron vise
- Blade cleaning chip brush
- Adjustable down feed and pressure control
Specifications
- Capacity:
- 0° Angle
- Round: 10”
- Rectangular: 9” x 18.1”
- -45 Angle
- Round: 9”
- Rectangular: 9” x 9”
- -60 Angle
- Round: 4.3”
- Rectangular: 9” x 4.3”
- 0° Angle
- Blade Speed: 95, 150, 213, 321 FPM
- Blade Size (LxWxT): 11' 6" x 1" x .035"
- Blade Motor: 2 HP
- Coolant Motor: 1/8 HP
- Workbed Height: 25.4"
- Weight: 1,320 lbs
- Floorspace (LxWxH): 55" x 74.8" x 66.9"
Manufacturer | |
SKU |
MH-460M
|
Shipping Method |
Flatbed
|
Weight |
1,550 lb
|
Dimensions |
55 × 75 × 67 in
|
Warranty |
1 Year
|
