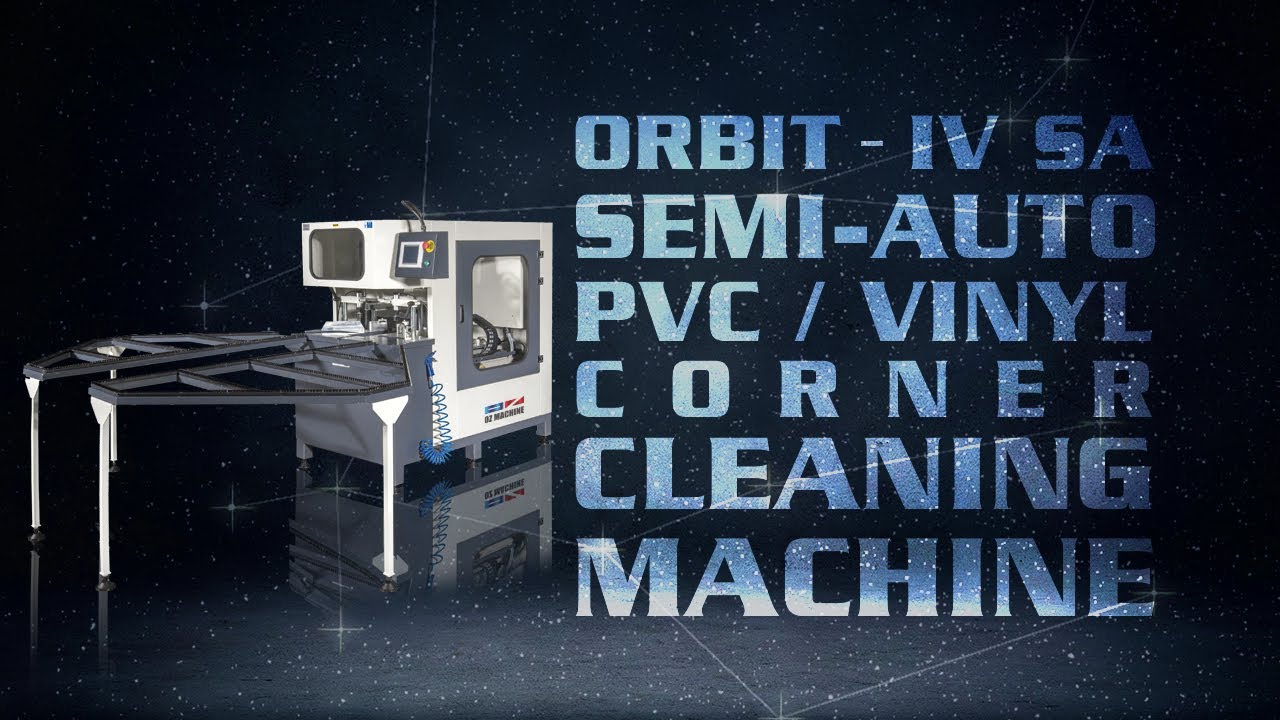

OZ Machine 220V 1.5HP Semi-Automatic PVC Corner and Surface Cleaning Machine ORBIT - IV SA
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
ORBIT - IV SA
|
15717
|
- KW: 1.1
- RPM: 3000
- Hz: 50 / 60
- Air consumption: 25 Gal/min
Features
- Used for cleaning the burrs created by welding of PVC window rails, doors, frames and etc. welded at an angle of 90°
- Cleaning of bottom, top and external surfaces of the profile by two independent cleaning units
- Memory capacity for 250 profiles
- Touchscreen control panel
- User friendly program entry for corner cleaning
- Operator adjusted cutting speed and axial speeds
Standard Equipment
- Saw blade for corner cleaning
- Surface cleaning blade
- Conveyor
Specifications
- HP: 1.5
- KW: 1.1
- RPM: 3000
- Hz: 50 / 60
- Voltage: 220 V
- Amp: 6 A
- Air pressure: 6-8 bar
- Air consumption: 25 Gal/min
- Weight: 882 lbs.
- Dimensions (L x W x H): 69” x 41” x 66”
Options
- Saw blade for corner cleaning
- Surface cleaning blade
- Conveyor
Manufacturer | |
SKU |
ORBIT - IV SA
|
Shipping Method |
LTL Freight
|
Weight |
1,213 lb
|
Dimensions |
74 × 46 × 71 in
|
Country of Origin |
Turkey
|
Warranty |
1 Year
|
