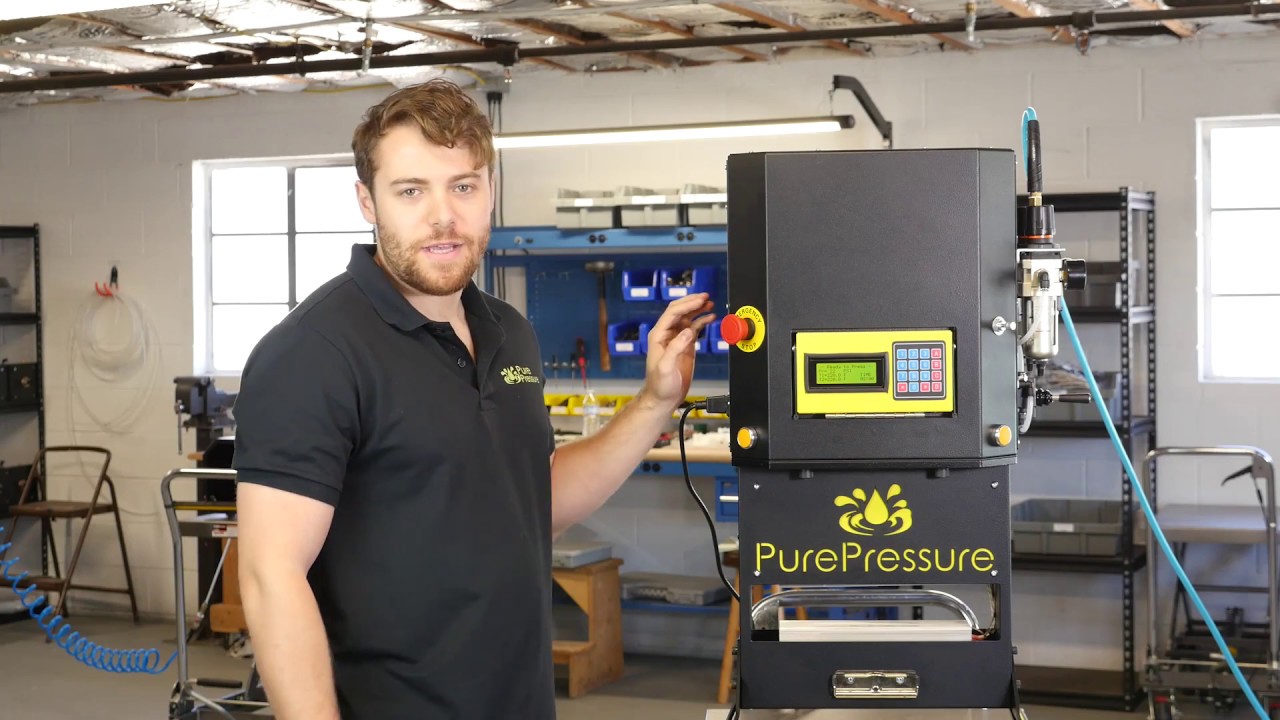

PurePressure 5 Ton Dual Pressure Pikes Peak Rosin Extraction Press V2 PPF001
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
PPF001
|
11022
|
- Press up to 20 grams of flower or 35 grams of kief or hash
- Premium 10" x 2.5" heat plate
- Save up to 30 pre-set recipes
- 5 tons of pressure output
Description
The Pikes Peak Press was engineered to provide years and years of reliability while giving you the highest quality press on the market. You, the user, has complete control over heat plate temperatures, press time, operating pressure (digital readout), and actuating speed. The Pikes Peak features 10" x 2.5" heat plates with our Dual Pressure system. The pneumatic cylinder requires no oiling or maintenance and through its unique design is able to achieve nearly 5 tons of force with only 120 PSI compressed air. These extremely high forces ensure that all of your rosin is extracted efficiently. All PurePressure products are manufactured in the USA and they guarantee unrivaled quality.
Features
- Premium 10" x 2.5" heat plate kit for the highest possible quality rosin production
- Press up to 20 grams of flower or 35 grams of kief or hash at a time with ease
- Features Pressware™ technology, which offers a full color LCD touch screen with custom software for even more control
- Dual Pressure technology included for complete control over your rosin extraction process
- Save up to 30 pre-set recipes so once you dial in your settings you can repeat your results
- 5 tons of pressure output (9,876 lbf @ 120 PSI compressed air) from our custom fabricated, oil-less, maintenance-free pneumatic cylinder
- 2 year manufacturer's warranty on the pneumatic cylinder and frame; 1 year manufacturer's warranty on everything else
- Even heat distribution from 0°F - 300°F from in-house machined 100% aluminum plates, each with its own thermocouple
- Temperature accuracy to less than half of 1 degree Fahrenheit
- Ultra-durable powder coated construction
Specifications
- Weight: 120 lbs
- Overall Dimensions: Horizontal: 29.2” x 19.7” x 13.5” Vertical: 15.5” x 19.7” x 33.3”
- Power Requirement: 120/240VAC, 8A at startup / 2A continuous
- Compressed Air Requirements: PSI: 5 – 120 CFM: 2.1 or greater
- Pneumatic Cylinder Maximum Force Output: 9,876 lb @ 120 PSI
- Frame & Enclosure Metal: A36 Steel
- Heat Plates:
- Size: 10” x 2.5”
- Material: 6061 Aluminum
- Maximum Temperature: 300 °F
Options
- Complete Accessory Kit
- Air connection kit
- Automated Pressure Control
Manufacturer | |
SKU |
PPF001
|
Shipping Method |
LTL Freight
|
Weight |
120 lb
|
Dimensions |
20 × 22 × 40 in
|
